Drain covers

There are 26 products.

Sort by:

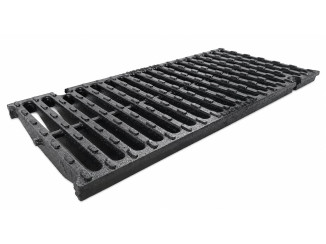

Grid 5025 - Gidrolica drainage systems - Kyiv and Ukraine.

Ref. 50209D

Water intake grate Gidrolica Super РВ -20.24.50 - slotted cast iron ВЧ, class D400

Series:: Gidrolica Super
Hydraulic section:: DN200
Load class:: D 400
Length, (mm):: 500
Width, (mm):: 246
Height, (mm):: 21
Material:: Cast iron

2,700.00

Grid 5039 - Gidrolica drainage systems - Kyiv and Ukraine.

Ref. 50223

Water intake grate RV-10.15.50 slotted cast iron VCH, class D

Hydraulic section:: DN100
Load class:: D 400
Length, (mm):: 500
Width, (mm):: 146
Height, (mm):: 30
Material:: Cast iron

1,404.00

Hydraulic grid GIDROLICA Stamped galvanized steel DN200 528

Ref. 513

Water intake grate RV -20.24.100- cell steel galvanized

Series:: Gidrolica Standart
Hydraulic section:: DN150
Load class:: A 15
Length, (mm):: 1000
Width, (mm):: 187
Height, (mm):: 30
Material:: Galvanized steel

1,200.00

Grid 5039 - Gidrolica drainage systems - Kyiv and Ukraine.

Ref. 5039

Slotted cast iron RF DN 300

Hydraulic section:: DN300
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 296
Height, (mm):: 25

5,580.00

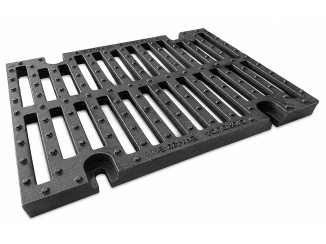

Grid 5030 - drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 5030

Water intake grate RV -30.40.50 slotted cast iron VCH, class E

Hydraulic section:: DN300
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 385
Height, (mm):: 30
Material:: Cast iron

6,192.00

Grid 5025 - Gidrolica drainage systems - Kyiv and Ukraine.

Ref. 5029

Water intake grate RV -20.25.50 slotted cast iron VCH, class E

Hydraulic section:: DN200
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 246
Height, (mm):: 35
Material:: Cast iron

2,820.00

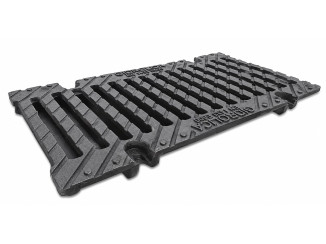

Grid 5020 - drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 5020

Slotted cast iron RF DN 200

Hydraulic section:: DN200
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 285
Height, (mm):: 30
Material:: Cast iron

3,096.00

Grid GIDROLICA Dense cast iron DN200 524

Ref. 524

Grid GIDROLICA Dense cast iron DN200 524

Series:: Gidrolica Standart
Hydraulic section:: DN200
Load class:: C 250
Length, (mm):: 500
Width, (mm):: 236
Height, (mm):: 24
Material:: Cast iron

1,360.00

Grid GIDROLICA Cellular galvanized steel DN200 522

Ref. 522

Gidrolica Standart RV -20.24.100 - collar galvanized steel, class B125

Series:: Gidrolica Standart
Hydraulic section:: DN200
Load class:: B 125
Length, (mm):: 1000
Width, (mm):: 236
Height, (mm):: 33
Material:: Galvanized steel

2,400.00

Hydraulic grid GIDROLICA Stamped steel galvanized DN200 528

Ref. 528

Water intake grate Gidrolica Standart RV -20.24.100 - stamped galvanized steel, class A15

Series:: Gidrolica Standart
Hydraulic section:: DN200
Load class:: A 15
Length, (mm):: 1000
Width, (mm):: 236
Height, (mm):: 20
Material:: Galvanized steel

1,200.00

Steel galvanized grid GIDROLICA DN150 518

Ref. 518

GIDROLICA Steel Galvanized Grid DN150

Hydraulic section:: DN150
Load class:: A 15
Length, (mm):: 1000
Width, (mm):: 186
Height, (mm):: 15
Material:: Galvanized steel

1,080.00

GIDROLICA Cast Iron DN150 516

Ref. 516

GIDROLICA Cast Iron DN150 Grid

Hydraulic section:: DN150
Load class:: C 250
Length, (mm):: 500
Width, (mm):: 187
Height, (mm):: 30
Material:: Cast iron

1,224.00

Grid 5019 - drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 5019

Slotted cast iron RF DN 150

Hydraulic section:: DN150
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 196
Height, (mm):: 25
Material:: Cast iron

2,580.00

Grid 5015 - drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 5015

Slotted cast iron RF DN 150

Hydraulic section:: DN150
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 237
Height, (mm):: 30
Material:: Cast iron

2,940.00

Grid 513 - drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 511

Water intake grate RV-15.18,7.100 DN150 collar galvanized steel, class B

Hydraulic section:: DN150
Load class:: B 125
Material:: Galvanized steel

980.00

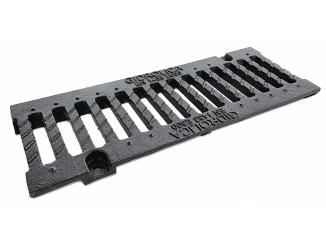

Grid 505 - drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 505

Water intake grid RV-11.20.50 slotted cast iron VCH, class E

Hydraulic section:: DN110
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 185
Height, (mm):: 35
Material:: Cast iron

1,920.00

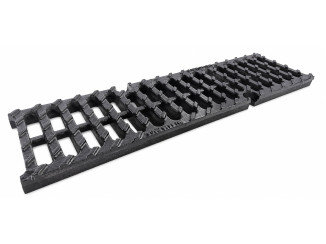

Grid 50109E - water drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 50109Е

Water intake grate RV 10.14,6.50 slot cast iron VCH, class E600

Hydraulic section:: DN100
Load class:: E 600
Length, (mm):: 500
Width, (mm):: 146
Height, (mm):: 25
Material:: Cast iron

1,620.00

Grid GIDROLICA Plastic DN100 504 - water drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 504

Water intake grate Gidrolica Standart RV -10.13,6.50 - plastic collar, class A15

Series:: Gidrolica Standart
Hydraulic section:: DN100
Load class:: A 15
Length, (mm):: 500
Width, (mm):: 136
Height, (mm):: 25
Material:: Plastic

180.00

Grid GIDROLICA Cellular Cast Iron DN100 507 - Gidrolica water drainage systems - Kyiv and Ukraine.

Ref. 507

Water intake grate Gidrolica Standart RV -10.13,6.50 cell cast iron VCH, class C250

Series:: Gidrolica Standart
Hydraulic section:: DN100
Load class:: C 250
Length, (mm):: 500
Width, (mm):: 136
Height, (mm):: 14
Material:: Cast iron

696.00

Grid GIDROLICA Slotted Manhole DN100 506 - water drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 506

Water intake grate Gidrolica Standart RV -10.13.6.50 - slotted cast iron VCh, class C250

Series:: Gidrolica Standart
Hydraulic section:: DN100
Load class:: C 250
Length, (mm):: 500
Width, (mm):: 136
Height, (mm):: 14
Material:: Cast iron

678.00

Grid GIDROLICA Cellar galvanized steel DN100 501 - water drainage systems Gidrolica - Kyiv and Ukraine.

Ref. 501

Water intake grate Gidrolica Standart RV -10.13.6.100 - collar steel galvanized, class A, B

Series:: Gidrolica Standart
Hydraulic section:: DN100
Load class:: B 125
Length, (mm):: 1000
Width, (mm):: 136
Height, (mm):: 30
Material:: Galvanized steel

1,562.00

Grid GIDROLICA Stamped stainless steel DN100 503 - water supply systems Gidrolica - Kyiv and Ukraine.

Ref. 503

Water intake grate Gidrolica Standart RV -10.13.6.100 - stamped stainless steel, class A15

Series:: Gidrolica Standart
Hydraulic section:: DN100
Load class:: A 15
Length, (mm):: 1000
Width, (mm):: 136
Height, (mm):: 25
Material:: Steel

1,320.00

Stamped copper grid GIDROLICA DN100 502 - water supply systems Gidrolica - Kyiv and Ukraine.

Ref. 502

Water intake grate Gidrolica Standart RV -10.13.6.100 - stamped copper, class A15

Series:: Gidrolica Standart
Hydraulic section:: DN100
Load class:: A 15
Length, (mm):: 1000
Width, (mm):: 136
Height, (mm):: 25
Material:: Copper

2,700.00

GIDROLICA Slotted Galvanized Steel Grate DN100 508 - Gidrolica Drainage Systems - Kyiv and Ukraine.

Ref. 508

Water intake grate Gidrolica Standart RV -10.13.6.100 - stamped galvanized steel, class A15

Series:: Gidrolica Standart
Hydraulic section:: DN100
Load class:: A 15
Length, (mm):: 1000
Width, (mm):: 136
Height, (mm):: 25
Material:: Steel

468.00

1
2

Storm grates (rainwater). Buy storm grates - drainage systems Gidrolica - Kyiv and Ukraine.

Why are drainage grates needed?

Drainage, water intake, and rain grates are all different names for the same element of surface water drainage, the main purpose of which is to reliably cover water drainage channels. All rain grates bear large mechanical loads, reducing the impact on the channels themselves and thereby extending their service life. Depending on the material of manufacture and strength index, grates are classified into load classes from A to F, which characterize their ability to withstand loads of a certain level. It is also important to consider the decorative value of this element of the surface water drainage system, as it allows even a not very pleasant concrete channel to easily blend into the overall landscape atmosphere.

Main functions of drainage grates:

Protective (reliably protect against large debris entering the channel). The grate openings allow water to pass through unhindered while trapping debris, leaves, and branches.
Decorative (grates fit well into the overall appearance of the area, beautifying even not very attractive concrete or plastic channels).
Practical (thanks to the grates, people, animals, or vehicles can safely pass through the channel passage).

Advantages and disadvantages of grates made of different materials

Modern technologies allow the production of drainage grates from cast iron, stainless steel, durable plastic, or even copper. The strongest and most reliable of them are cast iron grates, capable of withstanding maximum loads and used in areas with heavy vehicle traffic, at cargo terminals, etc., where they can withstand maximum mechanical loads. In pedestrian areas, grates made of durable plastic are most commonly used – a fairly reliable, economical, and visually appealing option. In the food industry, grates made of stainless or galvanized steel, resistant to aggressive environments, are used. Each type of material has its advantages and is intended for use in specific conditions.

Our specialists will provide professional assistance in selecting the optimal option for drainage grates for any construction project.
