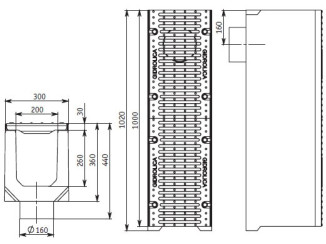

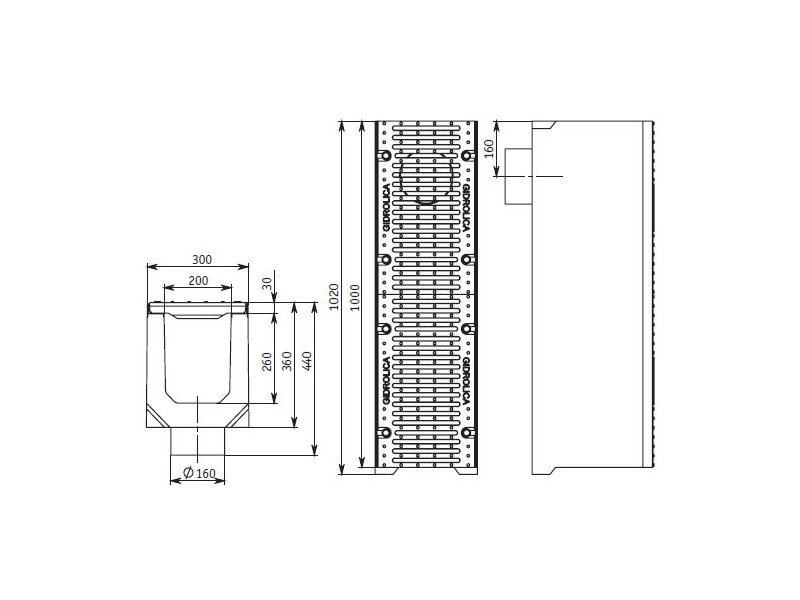

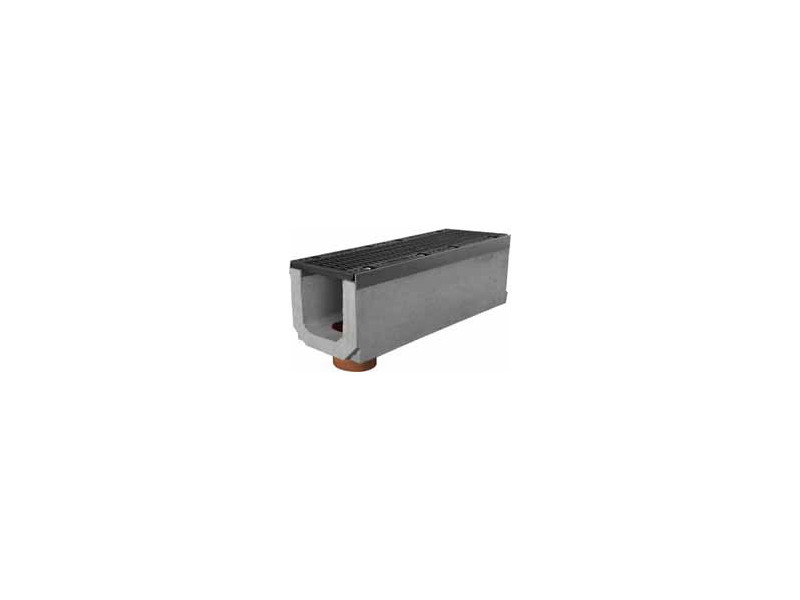

Set: SUPER LV-20.30.36 concrete water drainage tray with vertical water drain with VCH slotted cast iron grille, class E
In stock
Reference: 04231
8,294.00
E600 15/1,5 Kn/tn
Warehouses, industrial enterprises, docks
- Series
- Gidrolica Super
- Hydraulic section
- DN200
- Load class
- E 600
- Throughput, l/sec (slope 0.5%)
- 44,67
- Throughput, l/sec (slope 1%)
- 63,18
- Length, (mm)
- 1000
- Width, (mm)
- 300
- Height, (mm)
- 360
- Weight, (kg)
- 152,7
- Cross section, cm²
- 497
- Material
- Concrete, cast iron
Delivery: Nova Poshta
(Delivery, SAT - on request) payment by 12:00, dispatch: today Pickup from warehouses in Kyiv and Lviv pick up: today Courier delivery in Kyiv and regiondelivering: today
Payment:
- Online payment VISA / MasterCard
- Non-cash payment (Invoice)
- Cash
- Payment on delivery. Orders over 5000 UAH, oversized and heavy products are shipped only with full or partial prepayment
Return within 14 days
Return shipping at buyer's expense
Data sheet
- Brand
- Gidrolica
- Reference
- 04231
- In stock
- 1000 Items
- Series
- Gidrolica Super
- Hydraulic section
- DN200
- Load class
- E 600
- Throughput, l/sec (slope 0.5%)
- 44,67
- Throughput, l/sec (slope 1%)
- 63,18
- Length, (mm)
- 1000
- Width, (mm)
- 300
- Height, (mm)
- 360
- Weight, (kg)
- 152,7
- Cross section, cm²
- 497
- Material
- Concrete, cast iron
