- Series:
- Gidrolica Standart
- Hydraulic section:
- DN100
- Load class:
- C 250
- Length, (mm):
- 500
- Width, (mm):
- 140
- Height, (mm):
- 385
- Material:
- Concrete
840.00

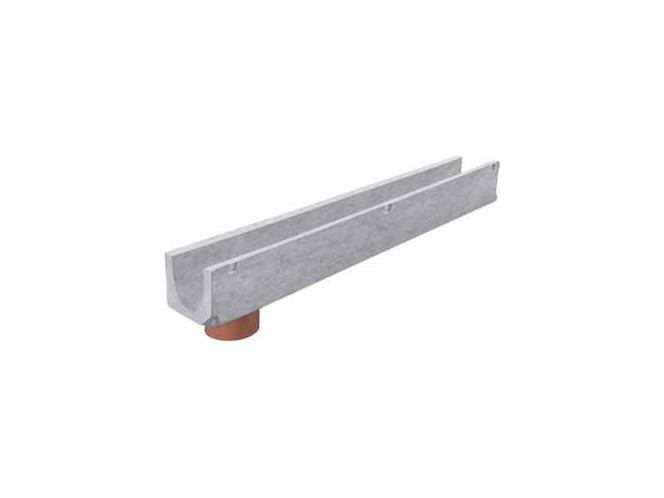

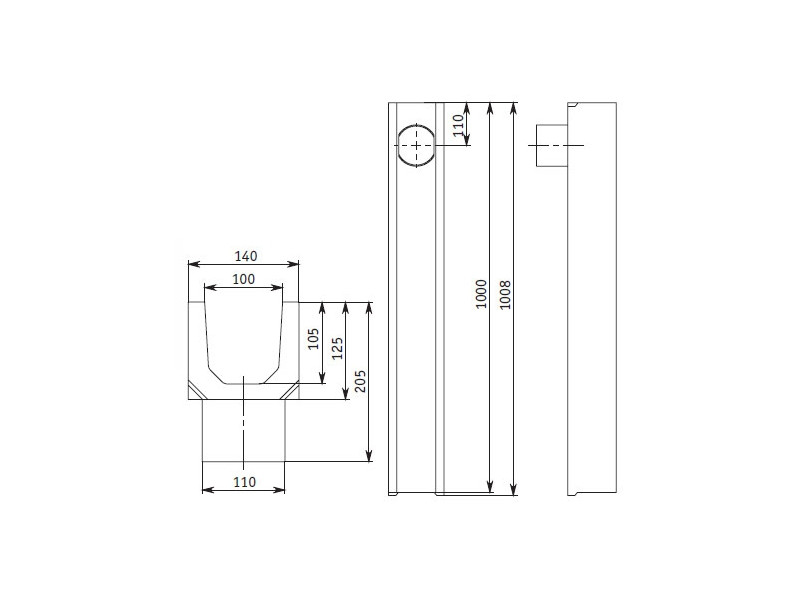

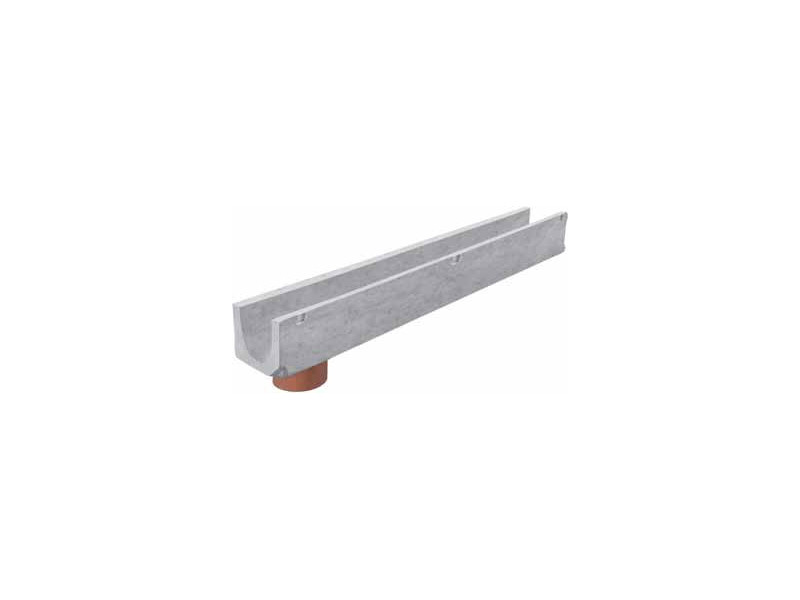

Water drainage tray LV-10.14.12.5, concrete DN100 with vertical drain.
In stock
Reference: 4001
210.00
C250 250/25 kN/t
Car parks, road shoulders, garages
- Series
- Gidrolica Standart
- Hydraulic section
- DN100
- Load class
- C 250
- Throughput, l/sec (slope 0.5%)
- 5,12
- Throughput, l/sec (slope 1%)
- 7,24
- Length, (mm)
- 1000
- Width, (mm)
- 140
- Height, (mm)
- 125
- Weight, (kg)
- 20
- Cross section, cm²
- 94,8
- Material
- Concrete
Delivery: Nova Poshta
(Delivery, SAT - on request) payment by 12:00, dispatch: today Pickup from warehouses in Kyiv and Lviv pick up: today Courier delivery in Kyiv and regiondelivering: today
Payment:
- Online payment VISA / MasterCard
- Non-cash payment (Invoice)
- Cash
- Payment on delivery. Orders over 5000 UAH, oversized and heavy products are shipped only with full or partial prepayment
Return within 14 days
Return shipping at buyer's expense
Data sheet
- Brand
- Gidrolica
- Reference
- 4001
- In stock
- 951 Items
- Series
- Gidrolica Standart
- Hydraulic section
- DN100
- Load class
- C 250
- Throughput, l/sec (slope 0.5%)
- 5,12
- Throughput, l/sec (slope 1%)
- 7,24
- Length, (mm)
- 1000
- Width, (mm)
- 140
- Height, (mm)
- 125
- Weight, (kg)
- 20
- Cross section, cm²
- 94,8
- Material
- Concrete
